Tracker-type Floating Solar Power Generation System

Overview

SOLATUS is a tracker-type floating solar photovoltaic system to maximize energy production by changing the inclination & azimuthal angle of its solar photovoltaic array according to the route of the moving sun, functioning to combine a sun-tracking technique and a floating structure along with mooring device on the water surface above the dam and reservoir

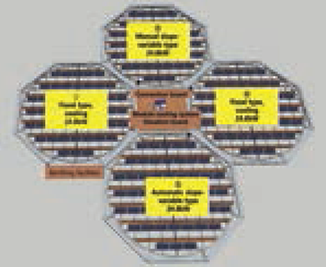

Configuration

Configuration

Features

  • Installed capacity : 100kW
  • Structure: 4 sets of 25kW
  • Fixed (cooling system) : 2 sets
  • Automatic sun-tracking : 1 set
  • Manual sun-tracking : 1 set
  • Area occupied : 2,662m2

Functions

  • Azimuthal Angle Tracking
    Horizontal Revolution Mechanism

    Azimuthal Angle Tracking Horizontal Revolution Mechanism
  • Water Level
    Response Mooring Device

    Water Level Response Mooring Device
  • Overview of structural system

    Overview of structural system

Effects

  • Develops proprietary technologies to achieve technical dominance
  • Encourages the mutual growth of solar power industry
  • Increases the efficient use of land
  • Six floating solar power plants are expected to produce the power generation revenue of KRW 7,814 million annually.
  • The power generation is 23% higher than that of a fixed-type floating solar power plants

Applications

  • The floating solar power plant in Hapcheon Dam started operation on December 2013.
  • 1,200MW floating solar power plants will be developed in 12 dams, including Sihwa Lake, by 2022.
